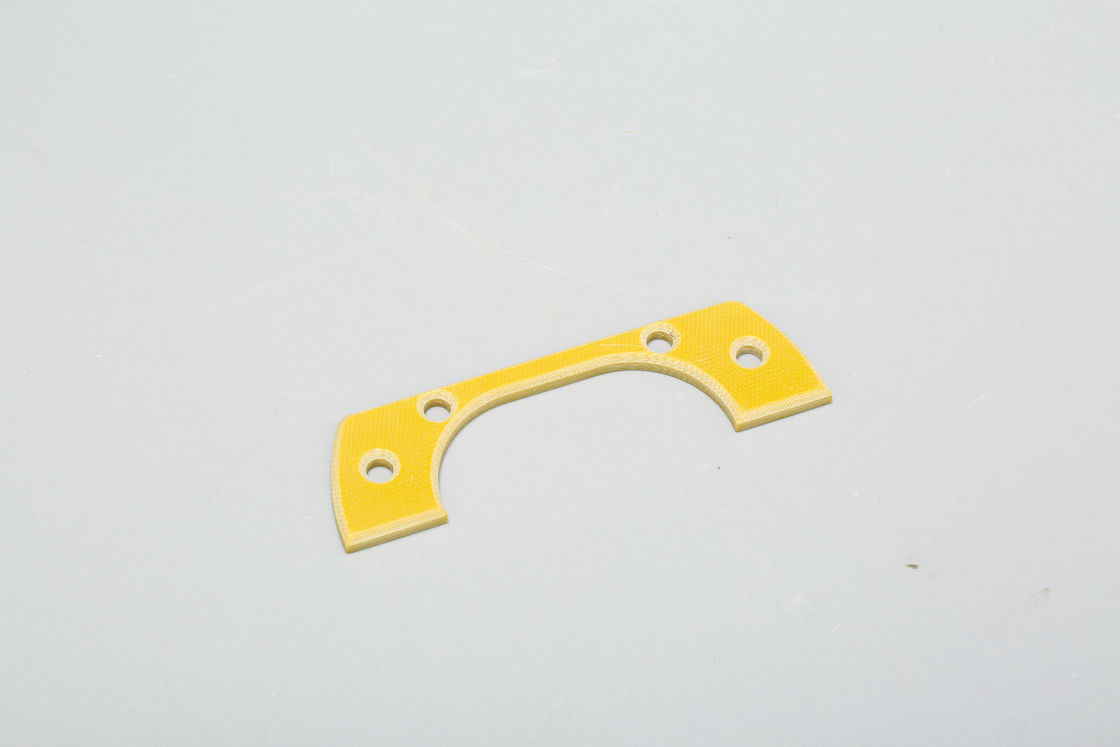

ISO Thermal Insulation Plate Mold Insulation Panels For Injection Molding Machine
Keeprecision-250-BR is ideal for injection molding machine mold insulation panels
Product Details
Keeprecision-250-BR is a resin fiberglass engineering composite material with excellent thermal insulation properties. It is an ideal choice for injection molding machine mold insulation panels.
In general, ceramic insulation materials are widely used for their excellent thermal and electrical insulation properties. They are commonly used in various industries, including aerospace, automotive, electronics, and energy.
Ceramic insulation materials offer several advantages, such as high-temperature resistance, low thermal conductivity, good chemical resistance, and stability in harsh environments. They are often used in applications where there is a need to control heat transfer or to provide electrical insulation.
Product Specifications
| Properties |
Test Standard |
Unit |
Value |
| Density 密度 |
DIN 53479 |
g/cm3 |
2 |
| Flexural Strength 抗折强度 at 23°C |
ISO 178 |
N/mm2 |
360 |
|
Compressive Strength at 23°C
抗压强度
|
ISO 604 |
N/mm2 |
600 |
| Coeff. of Thermal Expansion热膨胀系数 |
DIN 53752 |
10-6 K-1 |
13 |
| Thermal Conductivity导热系数 |
DIN 52612 |
W/mK |
0.22 |
| Continuous Service Temperature 连续使用温度 |
- |
°C |
250 |
| Maximum Service Temperature最高使用温度 |
- |
°C |
260 |
| Water Absorption吸水率 after 24h at 23°C |
DIN 53495 |
% |
0.1 |
Jiangsu Jingjing Insulation Board Thickness Tolerance Reference
| Insulation board specifications(mm) |
Thickness tolerance(mm) |
| 450*400范围内 |
±0.05mm |
| 1000*1000范围内 |
±0.1mm |
| 800*1000范围内 |
±0.01～±0.03mm
(Special precision requires grinding with high-precision equipment. Negotiable based on actual dimensions.)
|
Feature of product
In addition to efficient thermal insulation properties, Jiangsu Jingjing's mold insulation panels are also designed for high-pressure applications and have excellent mechanical properties. This makes our insulation materials particularly suitable for the need for material stability.
Features
Thermal insulation panels are highly resistant to pressure, especially in higher temperature applications
Efficient thermal insulation
Allows you to control mold temperature more accurately and better improve product quality and production efficiency
Ensure the stable flow of thermoplastic plastics during processing and forming.
Typical application industries
Mold insulation Thermosetting heat press insulation board
Injection molding machine heat insulation board Blow mold insulation board
Hot runner heat insulation board extruder
Jiangsu Jingjing insulation board processing and shipping time reference
Are you still worried about processing heat insulation boards, such as flying dust, affecting equipment accuracy and personnel health?
Are you still worried about product quality problems caused by processing heat insulation boards, such as cracks in holes, out-of-tolerance dimensions, product delamination, etc.
We now provide customer drawing processing services, and the shipping time is as follows:
| Product processing status |
Normal shipping time (working days) |
| Light sheet products3 working days |
| Drawing processing products |
5-7days
| Product processing status |
Normal shipping time |
| Light sheet products |
3days |
| Drawing processing products |
5-7days |
|
Remark:
The above is the factory shipping time. For the intermediate transportation time, please refer to the transportation time MAP on the website.
*Drawings, please try your best to provide CAD drawings so that our company can speed up the delivery time.
*If the customer is particularly urgent, please use our expedited shipping service. Please refer to the emergency shipping service on the website for details.
